How to Fit a Filtered Shower Head (No Plumber Needed)

The most common reason people hesitate over a filtered shower head is not the price. It is the quiet worry that it will not fit, and that a five-minute upgrade turns into a plumber's callout. In almost every case it does not.

The fitting, in plain terms

Handheld shower hoses and fixed shower arms use a standard half-inch connection. In New Zealand that is a G1/2 inch BSP thread. In the US and Canada the equivalent is a half-inch NPSM thread. They share the same nominal half-inch diameter and the same 14 threads per inch, and both seal on a rubber washer rather than on the thread itself, which is why a head from one market almost always threads onto a hose from the other and seals fine hand-tight.

This is also why you do not need thread tape for a shower head in the way you would for a pipe joint. The washer does the sealing.

The swap, step by step

• Unscrew the old head anticlockwise, by hand. If it has not moved in years, grip the collar with a cloth for purchase rather than pliers on the chrome. Nothing needs to be turned off first, but the water should be.
• Check the washer. There should be a small rubber washer seated inside the hose nut or the new head. If the old one is flattened or perished, use the new one. This is the single most common cause of a drip afterwards.

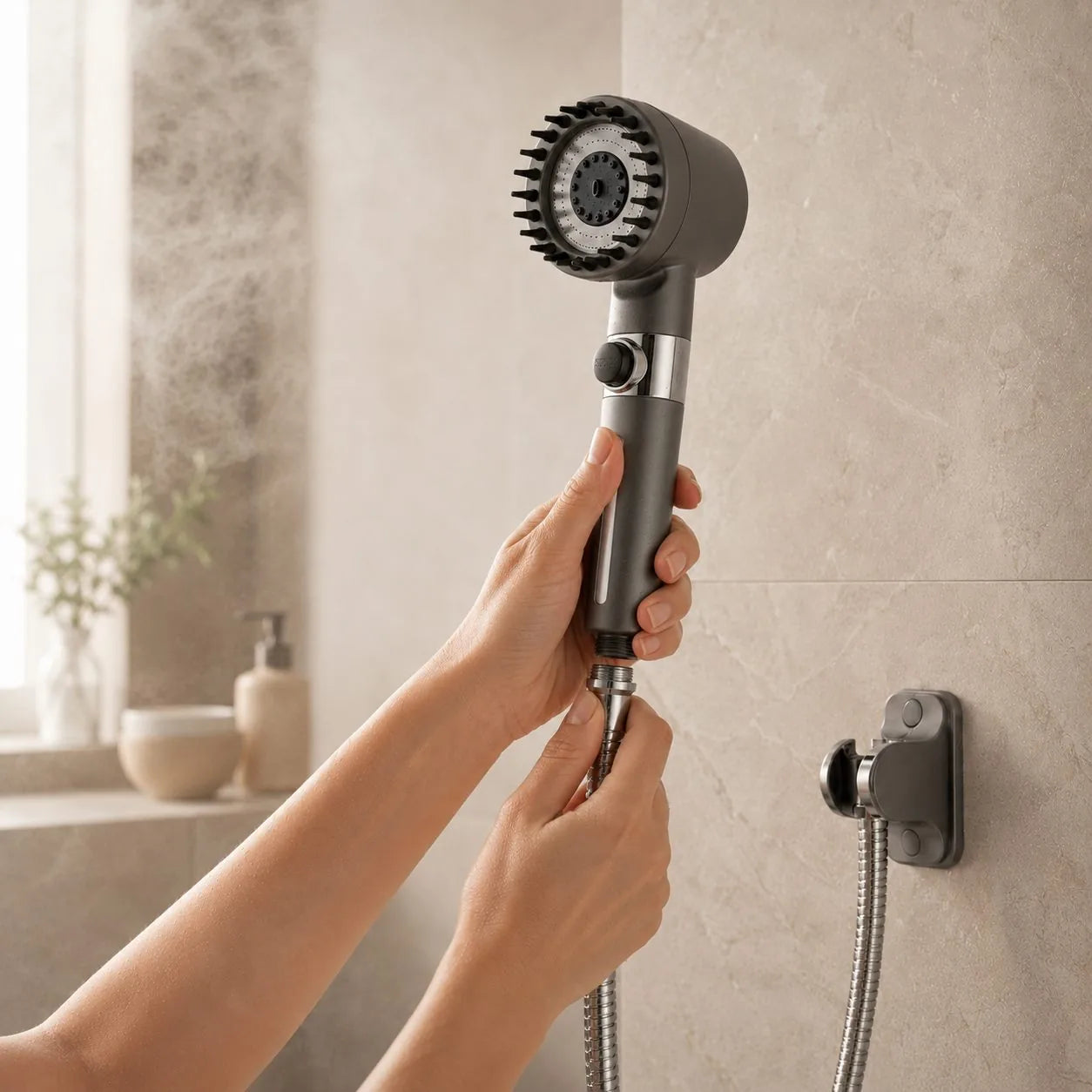

• Screw the new head on clockwise, hand-tight only. Firm is enough. Overtightening deforms the washer and causes the leak you were trying to avoid.
• Run it for thirty seconds and look at the joint. A drip almost always means the washer is missing, doubled up, or sitting crooked, not that the thread is wrong.

The setups that need an adapter

A few showers will not take a standard head directly:

• A rail shower with a proprietary quick-release cradle. The hose still ends in a standard thread, so the head swaps normally, it just may not clip back into that particular cradle.
• An overhead rain head plumbed directly into the wall or ceiling. There is no hose to unscrew. An inline filter is the practical answer here.
• An older imported fitting on a non-standard thread. Rare, and a cheap hardware-store adapter solves it.

If you would rather not change your head at all, the Vitamin C Shower Filter is a separate inline unit that screws in between the hose and the head you already have. Same half-inch fitting, same hand-tight approach.

What to expect afterwards

Run the shower for a minute or two before you judge it. A new cartridge can shed a little harmless fines on first use, and the water clears quickly. After that the difference people tend to notice first is the smell of the water rather than anything dramatic, followed over a week or two by how skin and hair feel after a rinse.

To be clear about the limits: filtering reduces chlorine taste and odour and fine sediment. It does not soften hard water, it is not a drinking-water filter, and it is not a medical or therapeutic treatment.

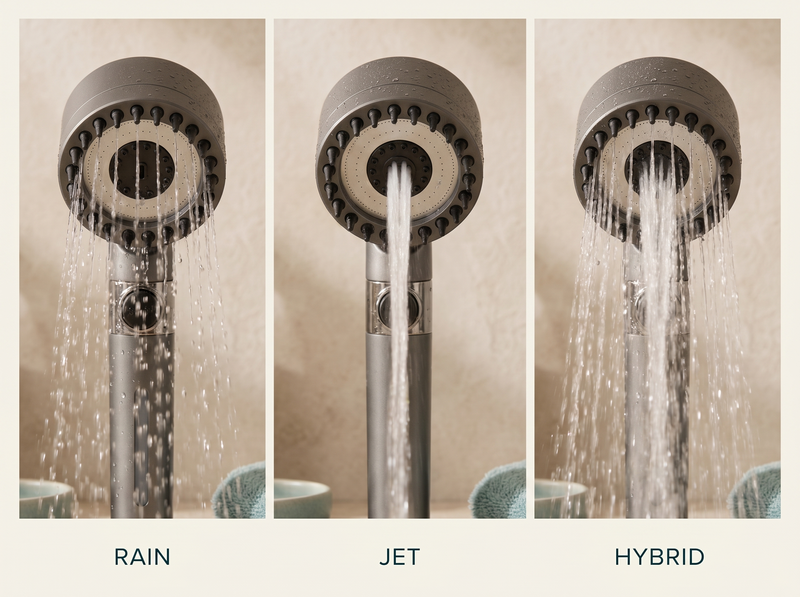

Ready to swap? The Ion Drop Filtered Shower Head comes with a cartridge fitted, and refills keep it going.

Both fittings are covered in the shower filter range.
